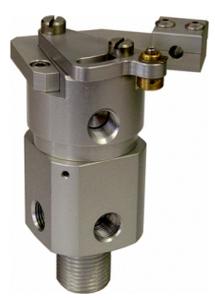

Part Number: 4110-110*

Dimensions:

 Height: 3.585"

 Width: (Body) - 1.360 X 1.360 Square
 (Bracket) - 2.500"

Weight: 0.625 Lbs.

Material: Aluminum/Brass
 High-pressure oxygen wetted parts made
 of Brass CDA 360 to prevent pressure
 shock and ignition.

 Low-pressure oxygen wetted parts and
 outlet line made of Aluminum 6061-T6 and
 Brass CDA 360.

Inlet: 3/4"-16 UNF Thread

Inlet (service) Pressure: 250 to 1850 psi

Outlet Pressure: 50 +/- 10 psi

End (Back) Pressure: 65+/- 10 psi

Outlet Flow: 100 to 150 LPM

Safety Relief Pressure Range: 2775 psi

Operating Temp. Range: -20F To +130F

Filling Device: One way valve 3/8-24 UNF

Seals: O-Rings, Silicon, and Viton

Lubrication: Krytox, GPL-226
Service Life :No limits when overhauled every
five (5) years
