Current Applications

• Emergency Fuel Boost
• Priming Injected Engines

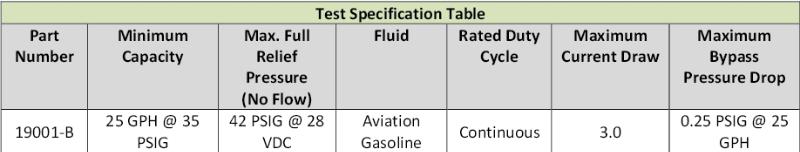

Performance

• Rated Flow: 25 GPH @ 35 PSI @ 28 VDC
• Bypass Pressure Loss: 0.25 PSI @ 25 GPH
• Full Relief Pressure: 40 to 42 PSI
• Current Drain @ Full Relief Pressure: 3.0 A
• Temperature Range: -65°F to 185°F

Applicable to Robinson R44 Aircraft.
