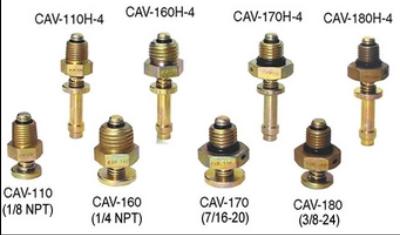

MODEL CAV-110 1/8" NPT For Cessna 310 tip tanks; Mooney Mark 20 and 20A; all Ercoupe models; Bellanca, Taylorcraft model B; Stinson 108, 108-1, 108-2, 108-3; Voyager model 10 and 10A; Navion; Waco VK series and UPF; and Sea Bee. (See tag for more models.) Fits all standard gascolators.

FEATURES:

• Eight models in two styles with or without 1/4" hose adapter
• All valves can be rebuilt
• Standard fuel resistant o-rings included
• Simple operation – just push to sample fuel

SPECIFICATIONS:

MATERIAL: 14L12 Steel
FINISH: Cadmium Plate QQ-P-416
TEMPERATURE: -60° to +260°F (-51° to +127°C)
O-RINGS: All valves M83248/1 Size -006 CAV-170 Size -012, CAV-180 Size -011
PRESSURE: 60 PSI max
