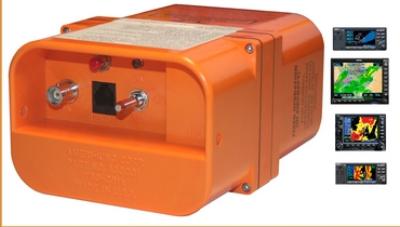

• Model : AK451-21
  • Part Number : AK451-21
Product Details
  • Interface with aircraft  GPS/NAV, via RS-232 Aviation Protocol:  Garmin Int’l Inc , Honeywell Bendix King Inc. , Trimble Nav Inc.; Arnav Inc., II Morrow Inc.
  • Applicable to all Aircraft types:  Transport Aircraft; Business Jet Aircraft; General Aviation, Helicopters.
  • Accuracy: 22 meters
  • Dual Antenna: Blade Type (1.0 Mach) or Rod Type (350 Knots) or Whip Type (300 Knots)   and  Portable Hand Use.
  • Ultra Long Lasting, up to 78 hours @-20 deg C, @ End of 5 yrs useful life time.Lithium Battery Package, Li MnO2 or Li SO2, 4 D-Size Cells.
  • Reliable sealed G Switch, for dependable safety.
  • Optional Multi Axes (5 Axes) G Switch for Helicopters
  •  Simple Installation. All accessories include Pre-fabricated Wiring Harness Assy, Remote Control Panel, Audible Warn Buzzer , Coaxial Cable Assy, and Universal Mounting Tray.
  • Coding Programming Worldwide, all available ELT Protocols, i.e.  Long Messages and Short Messages (Location Protocol; User Location Protocol; User Protocol)
  • Self Test built-in.  OXCO tech for perfect grad temp stability
  • PERP: 5W (406.028 MHz) 50 mw (243.0/121.5) MHz
  • RTCA Env Categories:
    F1XBA[204/183][204/183]XR[204/183]XXSZXXX(AC)204/183](BC)XXXX(C/204)
  • DIRECT RETROFIT to AK450,ACK/Pointer/Narco/Artex/Kannad

Made in U.S.A.
