Technical data

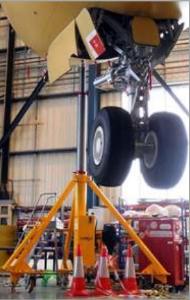

WIDE BODY TRIPOD TAIL JACKS

Load capacity   60 Tons

Minimum height   3600 mm

Hydraulic lift    3730 mm

Mechanical extension  618

Maximum height   7948 mm

APPLICABILITY

A300**,A310**, A318**/A319**/A320**/ A321**, A330**, A340-All**, A380-800, B707**, B727**,

B737**, B767**, B777**, B787**, DC-8**, DC-10**, MD11**, L1011**.

Standard Commercial Aircrafts

FEATURES

= Dual manual hand pump (Low/High pressure).

= Hydro-pneumatic pump.

= Safety valve for overload.

= Hard chrome plated piston.

= Teflon low friction seals, accurate cylinder

operation.

= Manual safety lock nuts.

= Bubble level and control panel for correct

operation.

= Manometer (bar/PSI - kN/Tons).

= Legs with heavy duty casters wheels.

= Legs with Joint balls and hydraulic

(main/nose) or mechanical (tail) height

adjustment for support on uneven surface.

= Max. ground pressure: 16 bars

= Skydroll resistant paint.

= Canvas rain hat.

= CE marked, EN1915 , ISO 1463, EN-12312

Compliant & 150% factory (vertical) and 15%

lateral load test.
