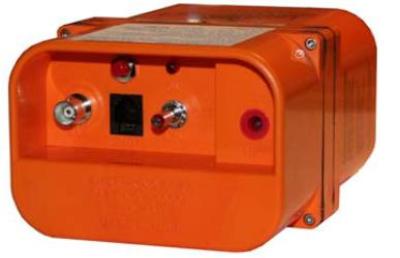

AK-451-(AF)(AP)
ELT EMERGENCY LOCATOR TRANSMITTER
with GPS/NAV Position
Triple Frequencies 406/121.5/243 MHz
FAA TSO-C126/91A approved, ETSO-2C126/91A Approved

DESCRIPTION:
The Ameri-King AK-451-(AF)(AF) Series is an Emergency Locator Transmitter. It transmits RF distress signal with aircraft ID immediately and accurately on triple (406 Satellite /243 Military /121.5 Civilian) MHz frequencies.
The supreme advantage feature is the aircraft GPS/NAV Latitude / Longitude exact position shall be transmitted, instantly, within 1 minute, on the very first burst, without waiting for a Polar Orbiting Satellite. Comparing with 406 MHz ELT without GPS/Nav position, this waiting period could be up to 4 hours.
Enhance the accuracy significantly, for the ground search area, from 1-2 kilometers (for 406 MHz ELT without GPS/ NAV Position) to 22 meters typical (for 406 MHz ELT with GPS/NAV Position).
Having triple frequencies insures your distress message reaches both NOAA Satellite Operation and US Air Force AFSR Ground Operation, Search and Rescue Team, with 100% fully confidence, due to transmitting on both 243.0 Military and 121.5 Civilian bands, for immediate ground search dispatch, narrowing the searching time to almost nothing.

FEATURES:
？
Applicable to all Aircraft types: Transport Aircraft; Business Jet Aircraft; General Aviation, Rotary Helicopters.
？
Requires separate Single Antenna, Blade Type (1.0 Mach); Rod Type (350 Knots); Whip Type (250 Knots); and Portable Hand Use.
？
Ultra Long Lasting, up to 78 hours @-20 deg C, Lithium Battery Package, Li MnO2 or Li SO2, 4 D-Size Cells, 5 yrs useful life time.
？
Made with Reliable sealed G Switch, for dependable safety.
？
Optional Multi Axes (6 Axes) G Switch for Helicopter applications.
？
Simple Installation. All accessories include Pre-fabricated Wiring Harness Assy, Remote Control Panel, Audible Warn Horn, Coaxial Cable Assy, and Universal Mounting Tray.
？
Interface with External GPS/NAV, via RS-232 Aviation Protocol: Garmin Int’l Inc , Honeywell Bendix King Inc. , Trimble Nav Inc.; Arnav Inc., II Morrow Inc.
？
Coding Programming Worldwide, all available ELT Protocols, i.e. Long Messages and Short Messages (Location Protocol; User Location Protocol; User Protocol)
？
OXCO technology for perfect gradient temp stability.
？
PERP: 5W (406.028 MHz) 50 mw (243.0/121.5) MHz
？
RTCA Environmental Categories: F1XBA(204/183)(204/183) (204/183)XR(204/183)XXSXXXXA(204/183)BXXXX
？
Dimension and Weight: (4.27”L x 2.95”W x 5.64”H), 1lb 8 oz
？
Approvals: COSPAS-SARSAT, FAA, EASA, FCC
？
Patent Pending. Made in U.S.A.
WARRANTY:
Two (2) years. Optional Extended Four (4) years Warranty.
