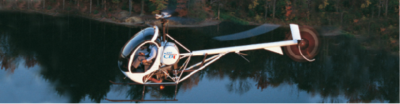

S300CBi
S300CBi is the derivative of S300C helicopter. The first flight was made in the year of 2002; it is the most-widely-used and the most reliable piston-engine powered helicopter with the best performance in the world. S300CBi is developed mainly aiming at commercial training market. It is the training helicopter at the lowest operation cost among those that has received FAA type certificate at present. The safety characteristic is further improved on the basis of S300C. The service life of all parts is 4000 flight hours or above, and all parts can be changed in the field. Its powerplant adopts the fuel injected Lycoming HI0-360-GIA engine, with the TBO of 2200 flight hours, and its continuous rating power is 180hp, which make the take-off weight of the helicopter to be dramatically improved.

Product Performance

Max speed/cruising speed ---------------------------------------------- 174/148 Km/Hr

Max endurance, standard fuel tank/additional fuel tank----------3.0/6.1Hrs

Hovering IGE/OGE----------------------------------------------------------2133/1463m

Empty Weight/Max Take-off Weight/Pay load ---------------------493.5/793/300Kg

Power of Lycoming H10-360-G1A Engine--------------------------180shp/134kW

Standard Fuel Tank/Additional Fuel Tank---------------------------87/87Kg

Max Range, Standard Fuel Tank/Additional Fuel Tank----------353/691Km

Passenger Seats------------------------------------------------------------2 seats
