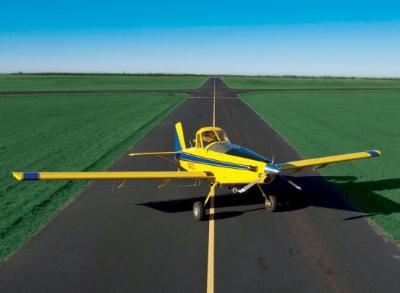

The Air Tractor AT-504 is a spray plane and trainer that's an excellent platform for aerial application instruction. Side-by-side cockpit seating lets experienced pilots effectively train new turboprop pilots. Both instructor and trainee each have complete flight controls and virtually the same cockpit view and flight perspective. Equipped with a Pratt & Whitney PT6-34AG engine, the AT-504 has working speeds equal to the AT-502B. Payload capacity is 485 gallons. Novice turboprop pilots experience similar flight performance when they move from the AT-504 to the AT-502B or other similar size turboprop ag planes. The AT-504 performs beautifully and is fun to fly. And like the rest of the Air Tractor line, it can be a real money maker.
SPECIFICATIONS
| Engine Type: |
P&W PT6A-34AG |
| Engine S.H.P.: |
750 @ 2,200 RPM |
| Propeller: |
Hartzell HC-B3TN-3D/T10282NS+4 |
| Take-Off Weight: |
9,600 lbs. (4 354 kg) |
| Landing Weight: |
8,000 lbs. (3 629 kg) |
| Empty Wt. w/Spray Equip.: |
4,768 lbs. (2 163 kg) |
| Useful Load: |
4,832 lbs. (2 191 kg) |
| Hopper Capacity: |
485 U.S. gal. (1 836 L) |
| Fuel Capacity: |
216 U.S. gal. (818 L) |
| Wing Span: |
52 ft. (15,84 m) |
| Wing Area: |
312 sq. ft. (29,01 m2) |
| Main Wheel Size: |
29.00 x 11-10 |
| Tail Wheel Size: |
5.00 x 5 |
PERFORMANCE
| Cruise Speed: |
151 mph (243 kph) at 8,000 ft. |
| Working Speed (Typical): |
120-145 mph (193-233 kph) |
| Range, Economy Cruise at 8,000 ft.: |
608 mi. (978 km) |
| Stall Speed, Flaps Up: |
75 mph (121 kph) at 8,000 lbs (3 629 kg) |
| Stall Speed, Flaps Down: |
65 mph (105 kph) at 8,000 lbs (3 629 kg) |
| Stall Speed as Usually Landed: |
53 mph (85 kph) |
| Rate of Climb: |
860 fpm (262 mpm) at 9,600 lbs (4 354 kg) |
| Take-Off Distance: |
1,150 ft (351 m) at 9,600 lbs (4 354 kg) |
