AT-802
Small Fixed Aircraft
- Model : AT-802
- Part Number :
Product Details

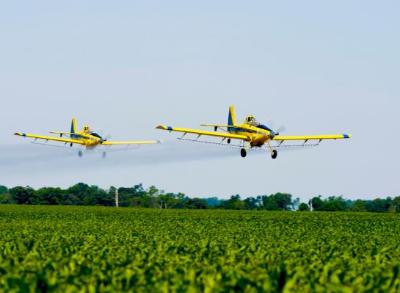

The AT-802/802A is the world's largest single engine aircraft, and its popularity reflects the industry's trend to larger, high-production turbine equipment. With a payload of 9,249 lbs, the AT-802A provides more working capacity than any other single-engine ag plane. Its power, speed and payload delivers large operation efficiencies and opens up new income opportunities.
SPECIFICATIONS
| Engine Type: | P&W PT6A-65AG |
| Engine S.H.P.: | 1,295 @ 1,700 RPM |
| Propeller: | Hartzell HC-B5MP-3F/M11276NS |
| Take-Off Weight: | 16,000 lbs. (7 257 kg) |
| Landing Weight: | 16,000 lbs. (7 257 kg) |
| Empty Wt. w/Spray Equip.: | 6,751 lbs. (3 062 kg) |
| Useful Load: | 9,249 lbs. (4 195 kg) |
| Hopper Capacity: | 800 U.S. gal. (3 028 L) |
| Fuel Capacity: | 254 U.S. gal. (961 L) |
| Wing Span: | 59.2 ft. (18,04 m) |
| Wing Area: | 401 sq. ft. (37,29 m2) |
| Main Wheel Size: | 11.00-12 |
| Tail Wheel Size: | 17.5 6.25-6 |
PERFORMANCE
| Cruise Speed: | 191 mph (307 kph) |
| Working Speed (Typical): | 130-160 mph (209-257 kph) |
| Range, Economy Cruise at 8,000 ft.: | 610 mi (982 km) |
| Stall Speed, Flaps Up: | 107 mph (172 kph) at 16,000 lbs (7 257 kg) |
| Stall Speed, Flaps Down: | 91 mph (146 kph) at 16,000 lbs (7 257 kg) |
| Stall Speed as Usually Landed: | 63 mph (101 kph) |
| Rate of Climb: | 780 fpm (237 mpm) at 16,000 lbs (7 257 kg) |
| Take-Off Distance: | 2,000 ft (610 m) at 16,000 lbs (7 257 kg) |
