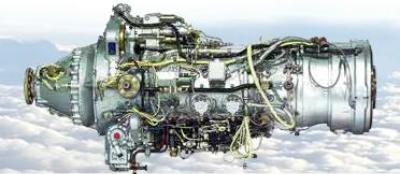

WJ5 series engine with interchangeability, used for civilian airliners, seaplanes and military transport aircraft, and can replace A, the Soviet union A и - 24, 24 bt и - series engine, such as in 24, 26 and AH - AH - AH - 30 on the plane. WJ5AI engine is the power unit of the domestic regional civil aviation passenger YunQi plane. WJ5E type engine is my company, shenyang institute of aircraft engine and the work of general electric company, the various performance indicators are better than WJ5AI engine.
| WJ5A, WJ5A Ⅰ and WJ5E main performance data |
| |
throttle Angle
α° |
speed
(n)
rpm |
Fuel consumption
(Gr)
kg/h |
Equivalent power
(Nd)hp |
After the turbine exhaust temperature
(T4)℃ |
Continuous working time
（分） |
| Take off state
|
WJ5A |
87-100 |
15600±150 |
≤822 |
3150±3% |
502 |
5 |
| WJ5AⅠ |
100±2 |
15600±150 |
+10
754
-20 |
2900±3% |
481 |
5 |
| 15600±150 |
≤755 |
(2790) |
493 |
5 |
| WJ5E |
100±2 |
15600±150 |
+10
696
-20 |
2900+3% |
452 |
5 |
| 15600±150 |
≤680 |
(2790) |
|
5 |
| The largest state
|
WJ5A |
74±2 |
15600±150 |
≤750 |
2800 |
|
30 |
| WJ5AⅠ |
79±2 |
≤715 |
(2600) |
476 |
60/5 |
| WJ5E |
≤648 |
(2600) |
|
5 |
| Rated condition
|
WJ5A |
65±2 |
15600±150 |
≤715 |
2585±3% |
478 |
60 |
| WJ5AⅠ |
642±10 |
2267±3% |
|
not limit/60 |
| WJ5E |
568±10 |
2270±3% |
412 |
60 |
| Flight state of the local train
|
WJ5A |
18 |
15600±150 |
按实测 |
730+50 |
314 |
30 |
| WJ5AⅠ |
按实测 |
(730+50) |
312 |
not limit |
| WJ5E |
按实测 |
(657) |
|
not limit |
|
|
